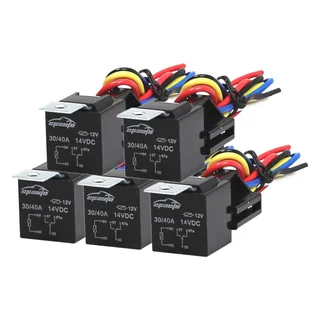

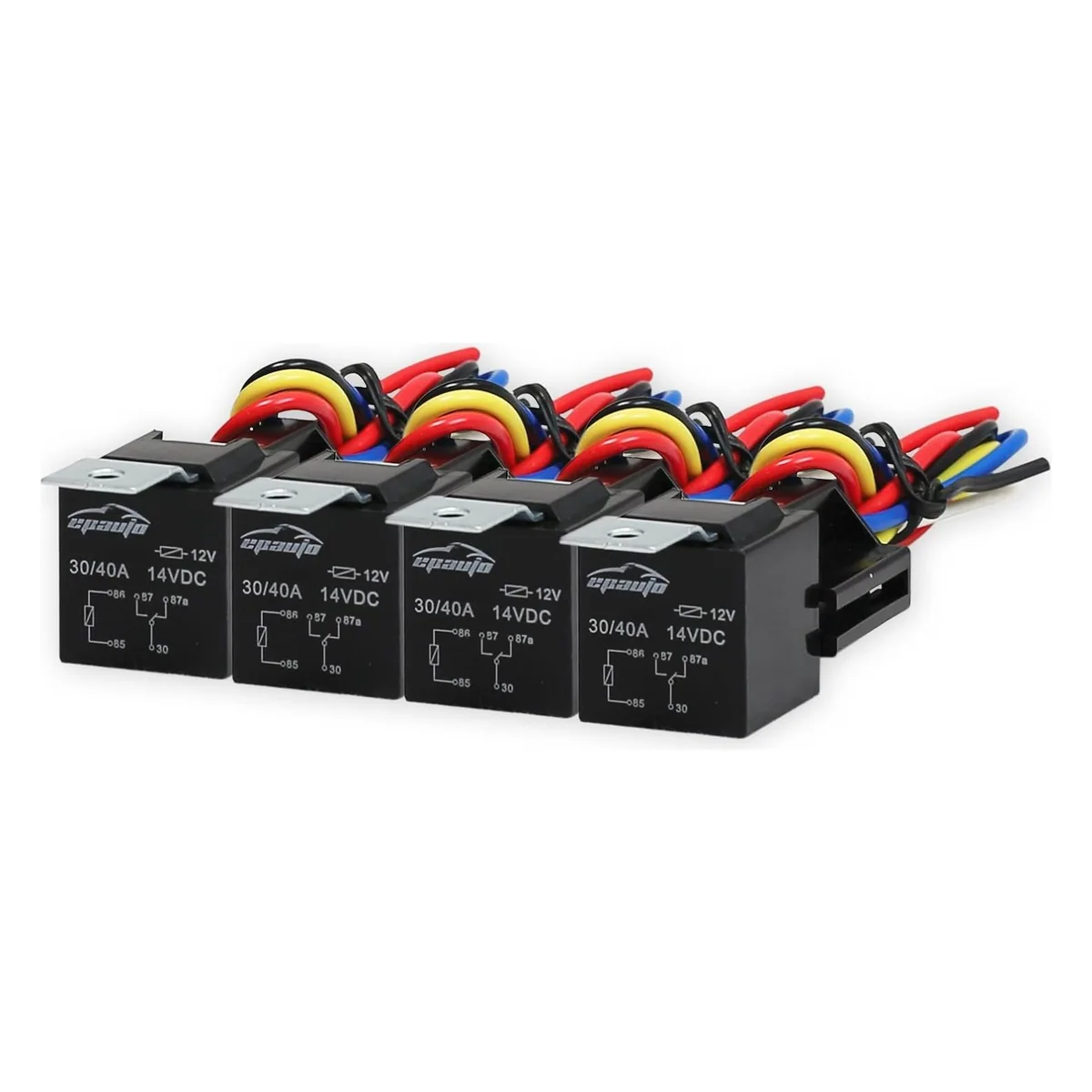

EPAuto 30/40 A SPDT Relay with Harness
30/40 A switching. 5-pin SPDT, 12V.
- Type
- SPDT relay with harness
- Rating
- 30/40 A
- Pins
- 5
- Voltage
- 12V
- Pack
- 4 or 5 relays with sockets
- Wire colors
- White common, black normally closed, yellow normally open
5-pin SPDT relays rated 30/40 A, each with a molded socket and color-coded wires. Packs of 4 or 5 for lights, fans, horns and pumps on a 12V system.
- 30/40 A switching
- 5-pin SPDT, 12V
- Molded socket with 5 wires
- 4-pack or 5-pack
- The pigtails are short, 6 in. or 9 in. on the main contact, so plan to splice longer wire.
Specifications
| Spec | 30/40 A SPDT Relay with Harness |
|---|---|
| Type | SPDT relay with harness |
| Rating | 30/40 A |
| Pins | 5 |
| Voltage | 12V |
| Pack | 4 or 5 relays with sockets |
| Wire colors | White common, black normally closed, yellow normally open |
In the box
- 4 or 5 relays
- 4 or 5 relay sockets with wires
Options
| Option | Price |
|---|---|
| 4-pack | $11.97 |
| 5-pack | $16.87 |
30/40 A SPDT Relay with Harness or Heavy-Duty Jumper Cables?
They do different jobs. The first costs from $11.97, the second from $22.87.
| 30/40 A SPDT Relay with Harness | Heavy-Duty Jumper Cables | |
|---|---|---|
| Type | SPDT relay with harness | Jumper cables |
| Price | from $11.97 | from $22.87 |
Choose the 30/40 A SPDT Relay with Harness for this: 30/40 a switching.
Choose the Heavy-Duty Jumper Cables for this: 6 gauge x 16 ft or 4 gauge x 20 ft. EPAuto Heavy-Duty Jumper Cables
30/40 A SPDT Relay with Harness questions
What do the wire colors mean on the 30/40 A SPDT Relay with Harness?
White is common, black is normally closed and yellow is normally open on the 5-wire socket.
How many relays come in the 30/40 A SPDT Relay with Harness pack?
4 or 5, each with its own socket and wires.
